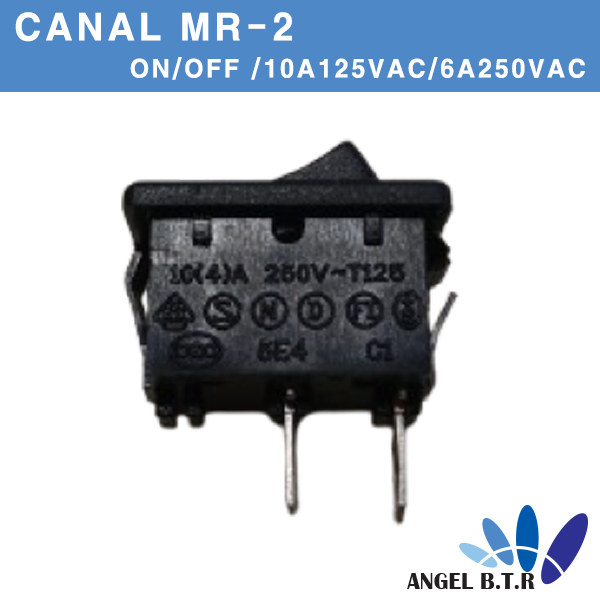

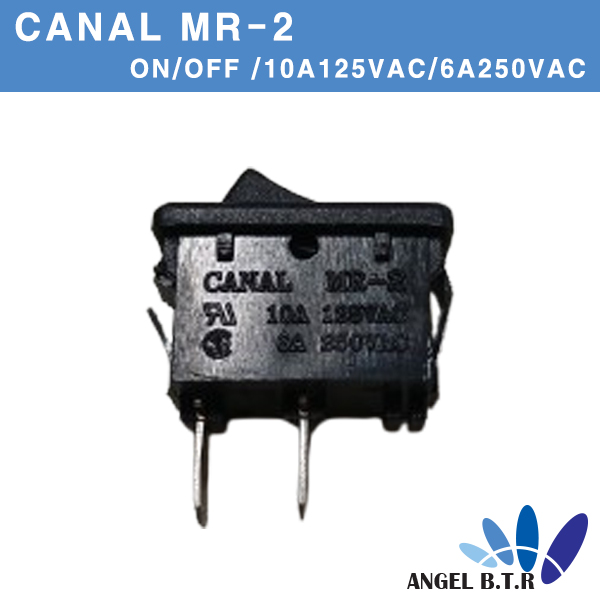

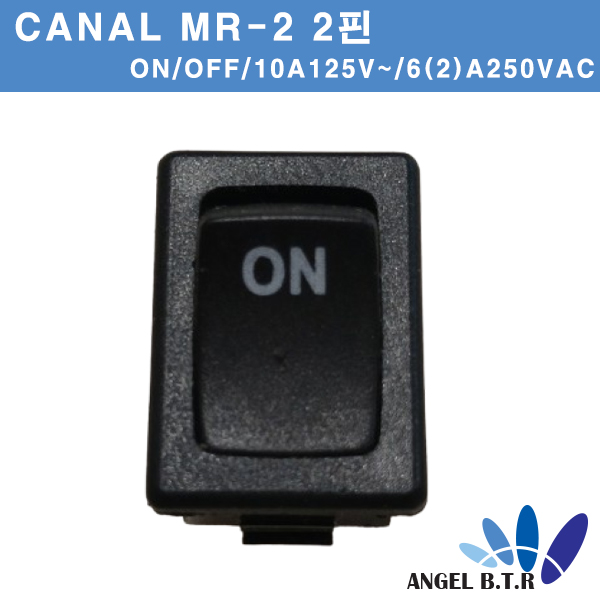

CANAL MR-2-113-C5-BB-3NW boat switch

Two-pin PCB pin (pin length about 3mm section 1*0.7mm),

load current: 10A 125VAC, 6A 250VAC.

Open and close form: on-off.

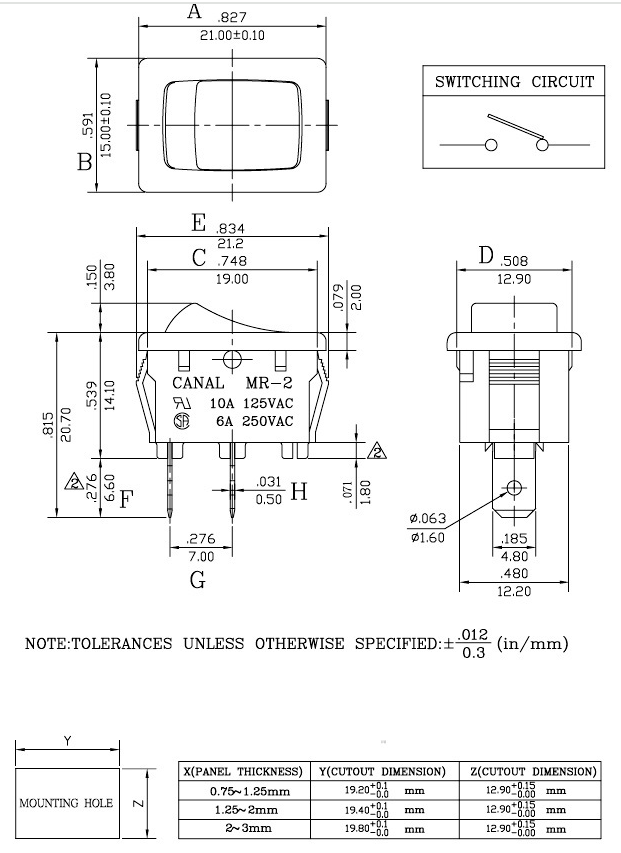

Panel size: 21 mm long, 15 mm wide.

Mounting hole size: 19 mm long, 13 mm wide.

10 (4) A 250VAC ~ T125 (VDE, ENEC)

10 (4) A 250V ~ T125 (CQC)

Initial contact resistance: 20 mm (Max.) measured less than 3 mm

Insulation resistance: 500VDC 100M ω (minimum)

Dielectric strength: 1,000VAC 1 min

Electrical life: 50,000 cycles for switching class II appliances

Base: Nylon 66, UL rate 94V-2 min

Actuator: PBT/nylon 66, UL rate 94V-2 min

Spring: Piano string

Contact: silver alloy

Terminal: Silver-copper plated, PCB terminal (pin length about 3mm, section 1*0.7mm, foot spacing 7mm)
