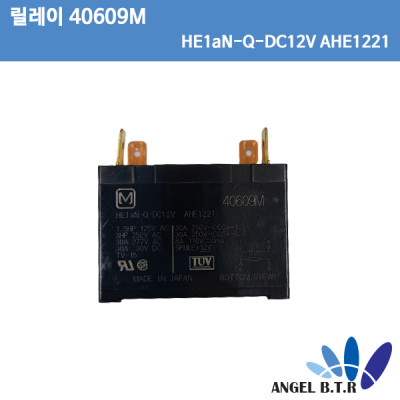

![[중고] [파워릴레이] 40609M HE1an-Q-DC12V AHE1221 12VDC 30A SPST-NO TOP MOUNT](http://xn--2j1bx1pnljp4i.com/data/item/1631869452/thumb-66a066CI7J2040609m_60x60.jpg)
등록된 상품이 없습니다.
| 브랜드 | M | |
|---|---|---|
| 모델명 | HE1an-Q-DC12V AHE1221 | |
| 코일전압 | DC12V | |
| 코일전류 | 160 | |
| 코일저항(옴) | 75 | |
| 절연저항(MOhm) | 1000 | |
| 최대접촉저항(MOhm) | 100 | |
| 최대픽업전압 | 8.4vdc | |
| Contact Form | SPST-NO (1Form A) | |
| Contact Rating (Current) | 20A | |
| Switching Voltage | 277VAC - Nom | |
| Turn On Voltage (Max) | 8.4 VDC | |
| Turn Off Voltage (Min) | 1.2 VDC | |
| Operate Time | 30ms | |
| Release Time | 10ms | |
| 터미널수 | 4 | |
| 최대스위칭전류(A) | 30 | |
| 최대스위칭전력(KVA) | 8.31 | |
| 작동온도 | -50°C ~ 55°C | |
| 무게 | 90g | |
| 사이즈 | 50 X 33 X 35 mm |
